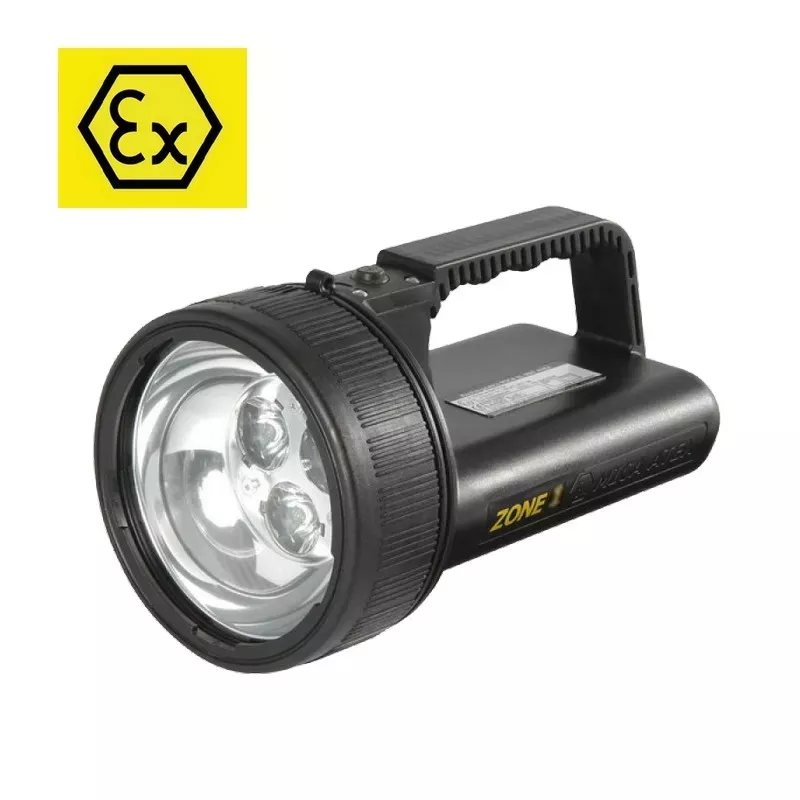

ATEX Flashlight IL800 zone 1 - 200 LUMENS

IL800 ATEX flashlight

Interested in this product?

Contact us for pricing!

200 lumen ATEX Zone 1/21 LED flashlight.

ATEX Zone 1/21

II 2G Ex ib IIC T4 Gb

II 2D Ex tb IIIC 100ºC IP67 Db

ATEX LED Flashlight IL800

Rechargeable LED flashlight ATEX Zone 1 - Explosive atmospheres.

(also available in ATEX Zone 0 version, please consult us)

Technical data:

  • Materials: Impact-resistant, antistatic polypropylene.
  • Glass : Reinforced glass (5 mm)
  • Beam type: Narrow (N) or Wide (W)
  • Light source: 3 power LEDs / Luminous flux: 200/80 lumens (high/low intensity) / Service life: 50,000h
  • Power supply: 6V NiMH rechargeable battery
  • Autonomy: High intensity = 6 hours (flashing 12 hours), and low intensity = 12 hours.
  • Charging time: 5.5 hours
  • Protection rating: IP 67
  • Weight incl. battery: 1.1 kg
  • Dimensions: 121 x 121 x 216 mm
  • Operating temperature : -20°C ... +40°C
  • Reference : LA42-IL800
  • Warranty : 2 years (Battery 6 months)

Accessories to be added (not included):

To enable the lamp to operate:

Protection classes and modes :

  • ATEX zone - Classification G (Gases): Zones 1 and 2 / Gas groups: IIA, IIB, IIC
  • Classification D (Dust): Zones 21 and 22 / Dust groups: IIIA, IIIB, IIIC
  • Temperature classification: Gas: T4 / Dust: 100°C
  • Certifications : ATEX: TÜV 10 ATEX 7879 / IECEx: IECEx TUR 11.0009
  • Other standards: IEC 60079-0:2007-10 Ed. 5.0; IEC 60079-11:2006-07 Ed. 5.0; IEC 60079-28:2006-08 1st Ed.; IEC 60079-31:2008-11 Ed. 1.0.
  • Type of protection: II 2G Ex ib IIC T4 Gb / II 2D Ex tb IIIC 100ºC IP67 Db

Prices on request, for more information click here or contact our sales department on +33 974 777 447

IL800 ATEX LED work lamp, lighting system from Prolutech.

LA42-IL800

Data sheet

Type of lamp
LED
Quantity of LEDs
3
LED color
White
Max. operating time (h)
12
Power supply
Ni-MH
Weight (kg)
1.100
Voltage (V)
6V
Protection rating
IP67
Rechargeable
YES
Power (lumens)
200

Technical data IL800 1 - FR

Download (303.93KB)
