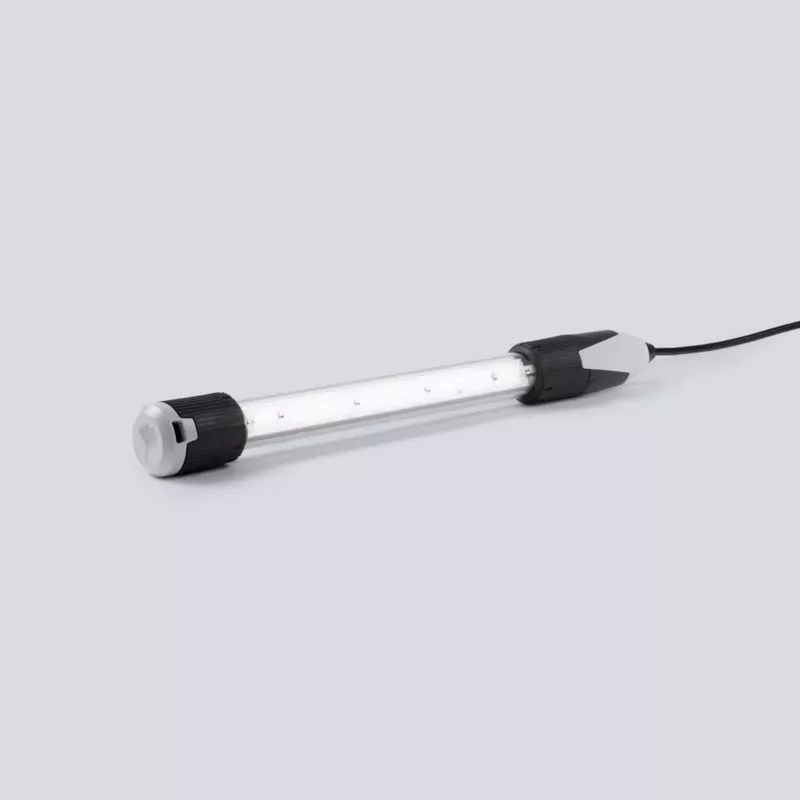

Tubulaire LED ATEX 230V 36W - 4620 LUMENS
Interested in this product?
Contact us for pricing!
Stahl LED Tubular 230V 4620 lumens, ATEX Zone 1/21 and 2/22 distributed by Prolutech.
The compact tubular LED luminaire of the 6036 series is ideal for general lighting and as a machine luminaire, even in hard-to-reach, space-restricted areas. Its energy-efficient LED technology and specially developed electronic design guarantee long life (up to 100,000 hours). Its robust construction enables it to be used at extreme temperatures between -55°C and +70°C.
Explosion protection
- Application areas (zones): 1, 2, 21, 22
- IECEx gas certificate: IECEx EPS 13.0027
- IECEx gas explosion protection: Ex db op is IIC T4 Gb
- IECEx dust certificate: IECEx EPS 13.0027
- IECEx dust explosion protection: Ex tb IIIC T100 °C Db
- ATEX gas certificate: EPS 13 ATEX 1 597
- ATEX gas explosion protection: E II 2 G Ex db op is IIC T4 Gb
- ATEX dust certificate: EPS 13 ATEX 1 597
- ATEX dust explosion protection: E II 2 D Ex tb IIIC T100 °C Db
- Certificates and approvals : ATEX, IECEx
Electrical data
- Rated operating voltage AC: 100 ... 277 V
- Rated operating voltage DC: 190 ... 250 V
- Nominal power: 36 W
- Power factor : ≥ 0,90
- Frequency range: 50 - 60Hz
- Control interface: none
- Rated current: 170 mA
Photometric data
- Light color: 850 - 5000 K CRI80
- Light distribution: with 140° deflector
- Luminous efficacy: 128 Im/W
- Luminous flux of luminaire: 4620 lm
- Color rendering : ≥ 80
- Color temperature: 5000 K
- Values apply for Ta = +25 °C
Ambient conditions
- Ambient temperature : -55 °C ... 70 °C M. under tension above -40 °C
- Storage temperature : -40 °C ... 70 °C
Mechanical data
- IP degree of protection (IEC 60598) : IP66 / IP68 (10 m / 60 min)
- Class : II
- Housing material : Polycarbonate
- Tube material: Polycarbonate
- Connecting cable type: H07RN8-F 2x1.5 mm² Cable length
- Cable length: 10 m
- Size: 3
- Length: 1150 mm
- Diameter: 55.9 mm
- Shock resistance (IEC 62262): IK11
- Weight: 3.24 kg
- Weight: 7.14 lb
Components
- Cable glands : CMP-20-A2F (M20x1.5)
- Protective grille: No
ST42-6036-31301-4450
Data sheet
- Total power (W)
- 36
- Color temperature
- 5000K
- Type of lamp
- LED
- LED color
- White
- Weight (kg)
- 3.240
- Voltage (V)
- 230V
- Protection rating
- IP66
IP68 - Rechargeable
- NO
- Power (lumens)
- 4620
